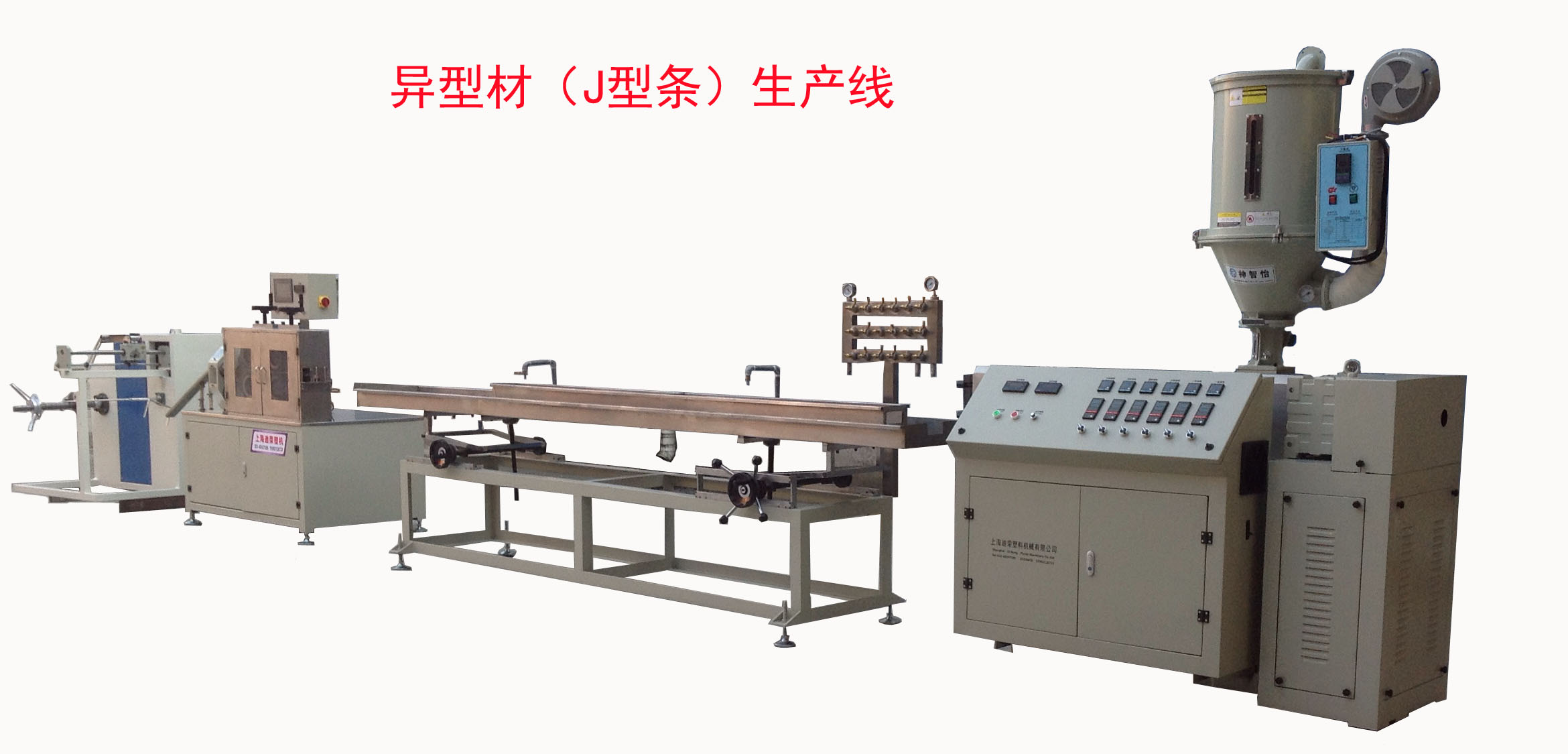

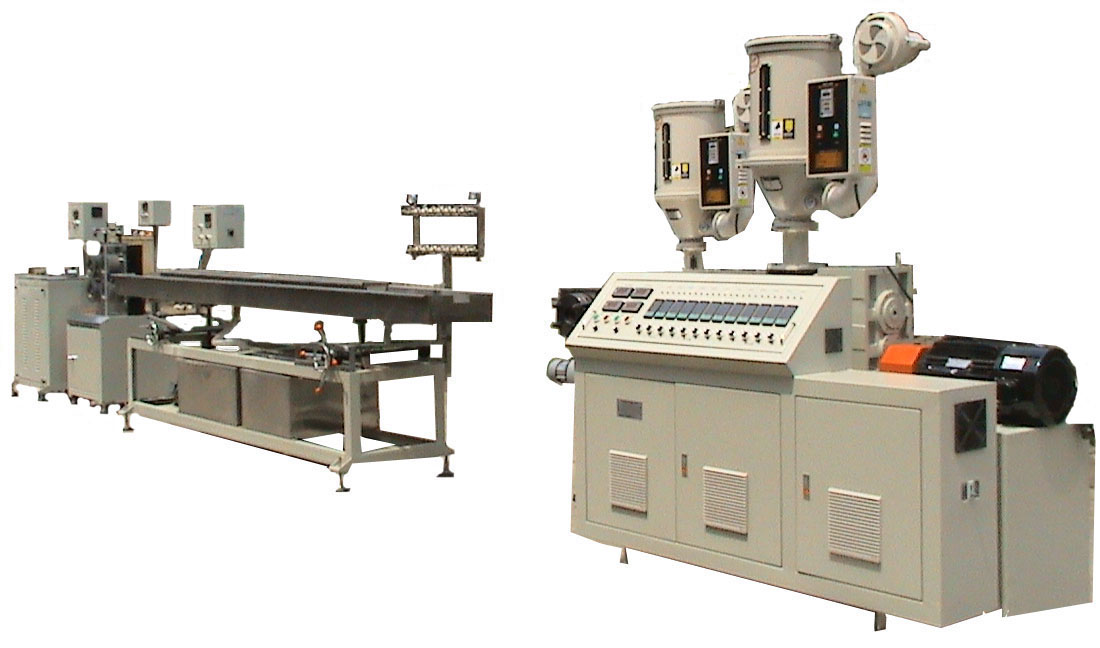

该机组由精密型挤出机、不锈钢定型水箱、精密型牵引机、 自动切割机组成。
该机组现主要应用于汽车制造业中配套的各种异型材，如门窗上的嵌条，汽车座椅中的各种型材，雨刮器底座等。
该机组可以由单机或两台以上共挤。
This unit consists of precision extrusion machine, stainless steel water tank, precision type traction machine, automatic cutting machine.
The unit is mainly used on all kinds of supporting special material in the automobile manufacturing industry such as the strip on doors and windows, various profiles in the vehicle seat, the wiper base etc.
The unit can be a single or more than two sets of extrusion.
|
机 型 Model |
螺杆直径 Screw dia |
电机功率 Motor power |
真空定型水箱 Vacuum calibrating tank |
真空泵功率 Vacuum pump power |
水泵功率 Pump power |
牵引功率 Traction power |
牵引速度 Traction speed |
切割功率 Cutting power |
|
SJ30x30 |
30 |
YVP-6-4kw |
5000mm |
2.2 kw |
2.2kw |
0.75kw |
0-17m/min |
0.37kw |
|
SJ45x30 |
45 |
YVP-6-11kw |
5000mm |
3 kw |
2.2kw |
0.75kw |
0-17m/min |
0.37kw |
|
SJ50x28 |
50 |
YVP-6-15kw |
5000mm |
3 kw |
2.2kw |
0.75kw |
0-17m/min |
0.37kw |
|
SJ60x28 |
60 |
YVP-6-18.5kw |
5000mm |
3 kw |
2.2kw |
0.75kw |
0-17m/min |
0.37kw |
